Question

How should I remove/replace the shaving heads?

Answer

Remove the shaving heads:

Switch off the appliance, remove the adapter from the wall outlet, and disconnect the small plug from the shaver or take the shaver out of the charger or the Jet Clean System

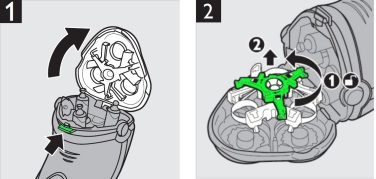

  1. Press the release button to open the shaving unit. (Fig. 1)
  2. Turn the lock counterclockwise and remove the retaining frame. (Fig. 2)



  1.  Remove the shaving heads.

Place the shaving heads back:

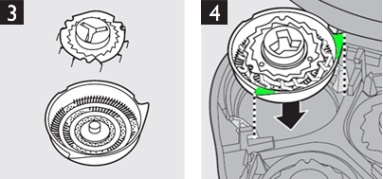

  1. Place the cutters back into the guards. (Fig. 3)
  2. Put the shaving heads back into the shaving unit. (Fig. 4) Make sure that the projections of all shaving heads fit exactly into the recesses.

  1. Put the retaining frame back into the shaving unit. (Fig. 5)

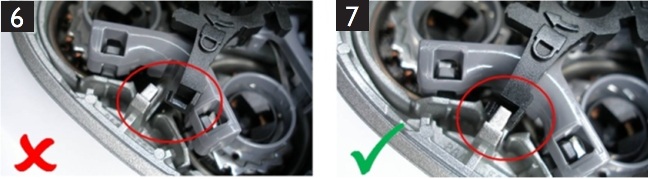

  1. Turn the lock counterclockwise. Make sure the retaining frame is properly locked (Fig 6 and 7).
