How do I replace the lamp?


  1. Unplug the appliance before you replace the lamp.
  2. Let the appliance cool down for approx. 15 minutes.

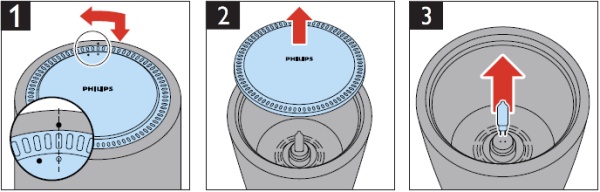

  3. Unlock the top cover of the appliance by pressing it and turning it counterclockwise until the o symbol on the top cover is aligned with the symbol  on the lamp housing. (Fig. 1)
  4. Remove the top cover. (Fig. 2)
  5. Remove the old lamp from the lamp holder. (Fig. 3)

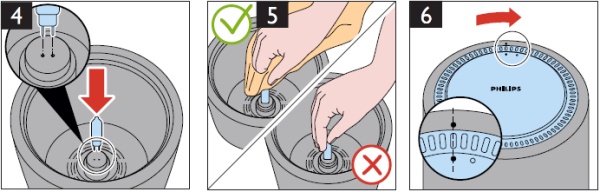

Do not touch the new lamp with your fingers. Use a cloth or paper towel when you place the lamp. (Fig. 5)

  1. Insert the pins of the new lamp into the lamp holder. (Fig. 4)
  2. Place the top cover back onto the appliance.
  3. Lock the top cover by turning it clockwise until the • symbol on the top cover and the • symbol on the lamp housing are aligned. (Fig. 6)
