Question

How to connect the cable signal via a cable converter box to the television using RF connections.

Answer

This connection will NOT supply Stereo sound to the TV. The sound from the cable box will be Mono.

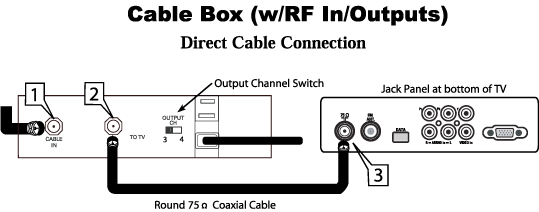

  1. Connect the open end of the round Cable Company supplied cable to the cable signal input plug on the back of the cable box.
  2. Use another round coaxial cable, connect one end to the output (TO TV) on the back of the cable box.
  3. Connect the other end of the round coaxial cable to the antenna input on the bottom of the TV and screw it down finger tight.

Note: Check that the OUTPUT CHANNEL SWITCH on the back of the cable box is set to CH3 or 4, then tune the cable box on the TV to the corresponding channel. Once tuned, change channels at the cable box, not the television.
