Hookup Home Theater to a television


The progressive scan video quality is only possible when using Y Pb Pr and a progressive scan TV is required.

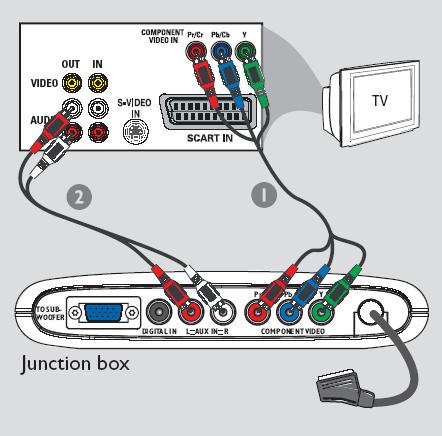

  1. Use the component video cables (red/ blue/green - not supplied) to connect the Junction Box’s Y Pb Pr sockets to the corresponding component video input sockets (or labelled as Y Pb/Cb Pr/Cr or YUV) on the TV. Do not connect the SCART from Junction Box to your TV.
  2. To hear the TV channels through this DVD system, use an audio cables (white/ red - not supplied) to connect AUX IN sockets to the corresponding AUDIO OUT sockets on the TV.
