Question

Connecting the player to a television. (Composite Video Connection)

Answer

  1. Connect the set’s yellow VIDEO OUT jack to your TV’s VIDEO IN jack. Use the supplied video cable that has yellow markings.

  2. Connect the supplied audio cable to the set’s white/red AUDIO OUT L/R (left/right) jacks and to the left/right AUDIO IN jacks on your TV. The supplied audio cable has red and white markings. Match the cable colors to the jack colors.

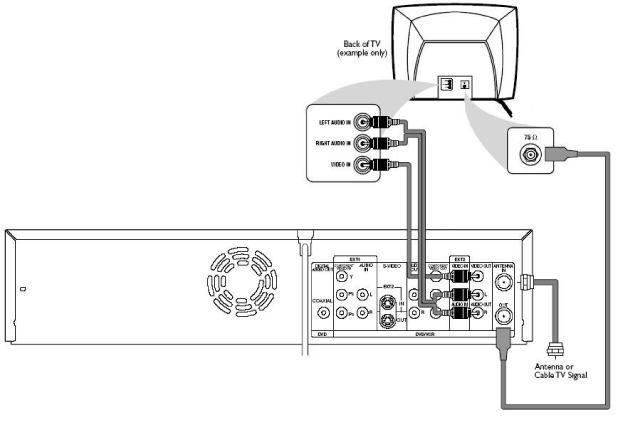

Composite Video Connection. (Example Only)
