Question

Connecting the player to a television. (Component Video Connection)

Answer

  1. Connect the set’s COMPONENT VIDEO OUT (Y PB PR) jacks to the TV’s COMPONENT VIDEO IN jacks. Use component video cable (not supplied), which has red, blue, and green markings. Match the cable colors to the jack colors.

  2. Connect the set’s white/red AUDIO OUT L/R (left/right) jacks to the TV’s left/right AUDIO IN jacks.

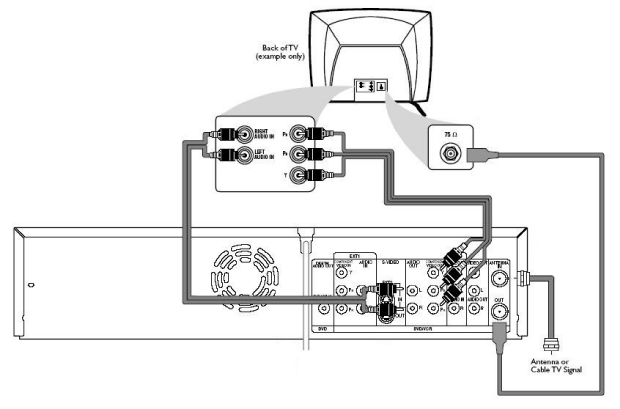

Component Video Connection. (Example Only)
