Question

How to connect to an audio system using LINE OUT.

Answer

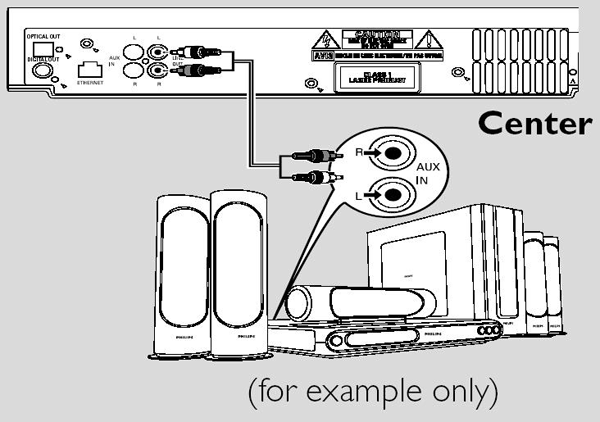

Connect Center to an audio system

  1. Insert the red plug of the red/white audio cables (supplied) to the red socket LINE OUT R and the white plug to the white socket LINE OUT L.

  2. Connect the other end of the audio cables to the AUX IN (or AUDIO IN) terminals of the additional appliance, red plug to the red socket AUX IN R and white plug to the white socket AUX IN L.

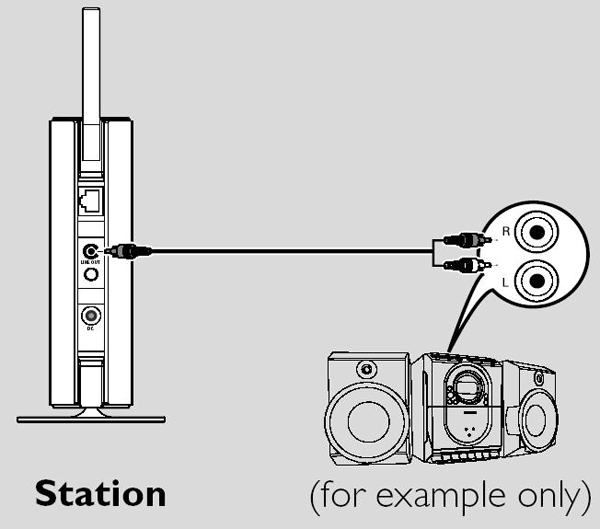

Connect Station to another audio system

  1. Insert the one-plug end of the audio cables (supplied) to LINE OUT.

  2. Connect the two-plug end of the audio cables to the AUX IN (or AUDIO IN) terminals of the additional appliance, red plug to the to the red socket AUX IN R and white plug to the white socket AUX IN L.

  3. Select AUX mode in the both connected audio systems.
