Question

How to connect using Component Video cables.

Answer

A Digital TV Receiver or a Digital Satellite Receiver is able to produces HD (High Definition) video signal with 480p, 720p, and 1080i formats. A Component (Y Pb, Pr) Connection is required for this kind of setup.


Note: This setup will also support 480i.

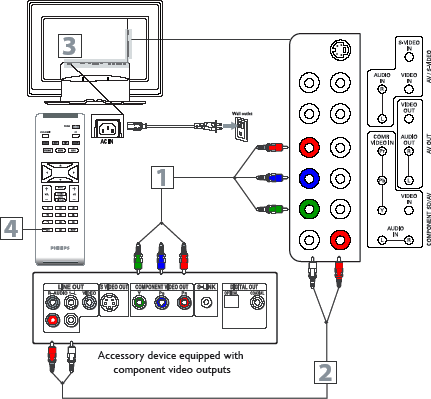

  1. Using a Component Video cable, connect the Digital TV Receiver’s Y, Pb, Pr jacks to the Y, Pb, Pr jacks on the TV. Use the HD IN connections.

    Note: Component Video (Y, Pb, Pr) connections in HD IN connections is necessary to view 480p, 720p, and 1080i formats.
    Note that the Component Video Input in AV IN 3 Connections can only support 480i format.
  2. Using an Audio cable, connect the Digital TV Receiver’s AUDIO OUT jacks to the TV’s AUDIO IN jacks in HD IN connections.
  3. Plug the power cable into AC inlet on LCD TV set. Plug the power cable into an outlet and switch TV set on.
  4. Use AV+ button on the remote control to select HD to watch DVD.

    Note: 1. The Y, Pb, Pr jacks do not provide audio, so audio cables must be connected to provide sound.
