Question

How to Connect with TV?

Answer

You only need to make ONE video connection from the following options, depending on the capabilities of your TV.
Option 1 : Using Scart Jack

  1. Use the SCART cable (black) to connect the DVD Player’s SCART jack (SCART) to the corresponding Scart input jacks on the TV.

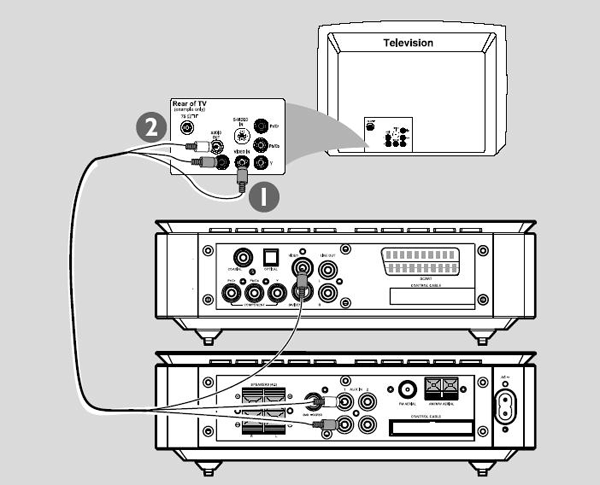

Option 2 : Using Composite Video jack

  1. Use the composite video connectors (yellow) of the supplied audio and composite video cables (2-in 1) to connect the DVD system's VIDEO OUT jack to the video input jack (or labeled as A/V In, CVBS, Composite or Baseband) on the TV
  2. Use the audio connectors (white/red) of the supplied audio and composite video cables (2-in 1) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

Option 3 : Using Component Video jacks (Y Pb Pr) - For Progressive Scan TV

  1. Use component video cables (red/blue/green - not supplied) to connect the DVD system's Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV
  2. Use the audio connectors (white/red) of the supplied audio and composite video cables 2-in 1) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

Option 4 : Using S-Video jack

  1. Use an S-Video cable (not supplied) to connect the DVD system’s S-VIDEO jack to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV
  2. Use the audio connectors (white/red) of the supplied audio and composite video cables (2-in 1) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.

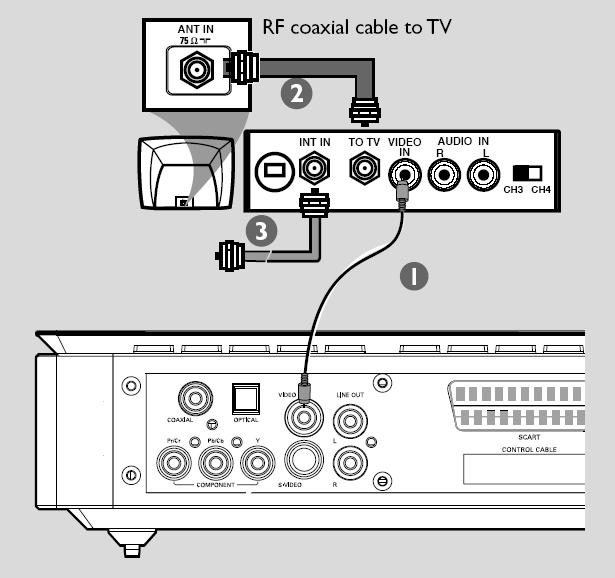

Option 5 : Using an accessory RF modulator

  1. Use the composite video cable (yellow) to connect the DVD system’s VIDEO OUT jack to the video input jack on the RF modulator
  2. Use an RF coaxial cable (not supplied) to connect ANTENNA OUT or TO TV jack on the RF modulator to the Antenna IN jack on the TV.
  3. Connect the Antenna or Cable TV service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV.)
