Question

Connecting the set to the television

Answer

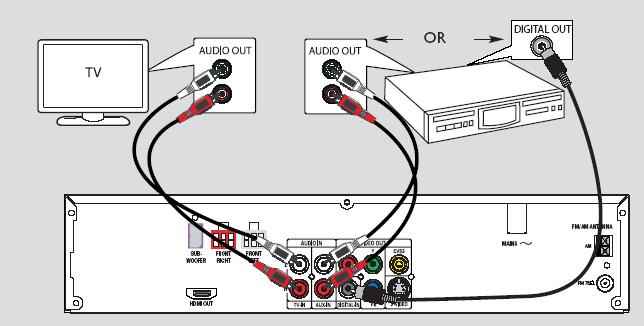

Audio Connection

Connecting audio from TV

  1. Use an audio cable (red/white - not supplied) to connect the TV IN jacks on this DVD system to the AUDIO OUT jacks on the TV.
  2. To listen to the sound, press TV on the remote control as the sound source that you want to play.
    • NOTE: You may have to adjust the audio setting on your TV in order to direct sound out.  Consult your TV owners manual or contact the manufacturer if you are not sure.

Connecting audio from an audio/video device

  1. Use an audio cable (red/white - not supplied) to connect the AUX IN jacks on this DVD system to the AUDIO OUT
    jacks on the connected device.
  2. To listen to the sound, press AUX/DI to select 'AUX' as the sound source that you want to play.

Or

  1. Use a coaxial cable (not supplied) to connect the DIGITAL IN jack on this DVD system to the DIGITAL OUT jack on the connected device.
  2. To listen to the sound, press AUX/DI to select 'DI' as the sound source that you want to play.

Video Connection

You only need to choose ONE of the options below to make the video connection.

Option 1: For a standard TV - Using the Video (CVBS) jack (good picture quality)

Use the supplied composite video cable (yellow) to connect the CVBS jack on the DVD system to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV.

Option 2: For a standard TV - Using the S-Video jack (excellent picture quality)

Use an S-video cable (not supplied) to connect the S-VIDEO (Y/C) jack on the DVD system to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV.

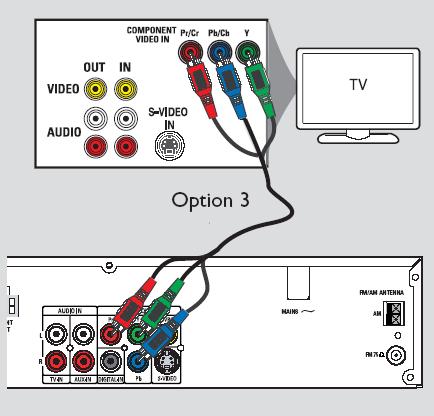

Option 3: For a progressive scan TV - Connecting to a Progressive Scan TV or component video input

  1. Use the component video cables (red/blue/green - not supplied) to connect the Y Pb Pr jacks on the DVD system to the corresponding component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.
  2. Turn off your TV progressive scan mode or turn on to the interlaced mode (refer to your TV’s user manual)
  3. Turn on the DVD system and press SOURCE button until 'DISC' appears on the display panel.
  4. Turn on the TV and set it to the correct video-in channel. The blue DVD background screen will appear on the TV.
  5. Press SETUP on the remote control.
  6. Press repeatedly to select { Video Setup Page }.
  7. Select { Progressive } > { On }, then press OK to confirm.
  8. Read the notification message on the TV and confirm your action by selecting the { OK } in the menu and press OK.

    If a blank/distorted screen appears, wait for 15 seconds for the auto recovery. Otherwise, select { Cancel } and press OK to go back to the previous menu.

    There will be no picture on your TV at this state until you have turned on the progressive scan mode on your TV.
  9. Turn on your TV progressive scan mode (refer to your TV’s user manual). A message appears on the TV.
  10. Confirm your action by selecting the in the menu and press OK.

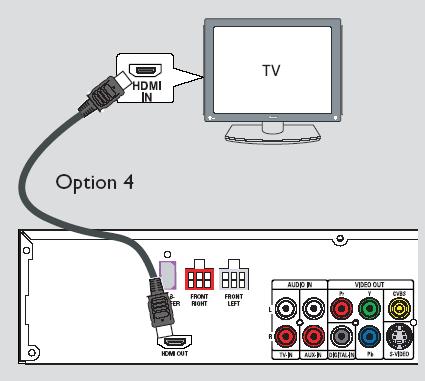

Option 4: For a HDMI TV - Connecting to a HDMI compatible TV

  1. Use an HDMI cable (not supplied) to connect the HDMI OUT on this DVD system to the HDMI IN on a HDMI compatible device (e.g. HDMI TV, HDCP compliant DVI TV).
  2. In ‘DISC’ mode, press SETUP on the remote control. The setup menu appears.
  3. Use keys to select { Audio Setup Page } and press OK.
  4. Use keys to select { HDMI Audio } and press to access.
  5. Select the setting you wish to change and press OK to confirm.

    • { Off } – Select this if the playback audio format is not supported by HDMI connection (e.g. projector, SACD.) It will turn off the HDMI audio output.
    • { PCM } – Select this to downmix the audio signals to linear-PCM (2-channel).
    • { All } – Select this to enjoy the multi-channel audio output through the HDMI connection.
  6. Use keys to select { Video Setup Page } and press OK.
  7. Use keys to select { HDMI Setup } and press to access.
  8. Select the setting you wish to change and press OK to confirm.

    • { HDMI Video } – Selects a suitable video resolution depending on the capability of the connected TV/device to further enhance the HDMI video output.

      • { 480p } - Progressive output in 480 lines for NTSC TV.
      • { 576p } - Progressive output in 576 lines for PAL TV.
      • { 720p } - (if a HDMI TV is connected) Progressive output upscale to 720 lines.
      • { 1080i } - (if a HDMI TV is connected) Interlaced output upscale to 1080 lines.
      • { Auto } - The video output will automatically follow the display’s supported resolution.
    • { Wide Screen Format } – Selects a suitable screen display. This feature is only available if you have selected { TV Display - 16:9 Wide Screen }.

      • { Superwide } - Selects this to display the 4:3 picture disc on the wide-screen TV with non-linear stretching (center position of the screen is stretched less than the side).
      • { 4:3 Pillar Box } - Selects this to display 4:3 picture disc on the widescreen TV without stretching. Black bars will be shown on the both sides of the TV screen.
      • { Off } - No aspect ratio adjustment is made when this option is selected.

Note: The { Wide Screen Format } feature will be disabled if your HDMI TV has been preset to { 480p } or { 576p } settings.

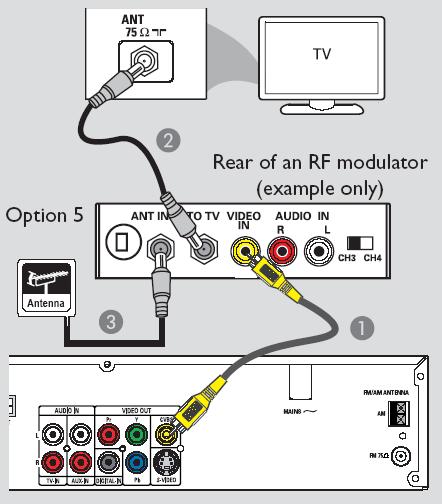

Option 5: For TV with only a single antenna input jack - Using an accessory RF modulator

  1. Use the supplied composite video cable (yellow) to connect the DVD system’s CVBS jack to the video input jack on the RF modulator.
  2. Use an RF coaxial cable (not supplied) to connect ANTENNA OUT to TO TV jack on the RF modulator to the ANTENNA IN jack on the TV.
  3. Connect the Antenna or Cable TV service signal to the ANTENNA IN or RF IN jack on the RF modulator.
