Question

How do I connect a XBox 360 to the TV?

Answer

There are 2 methods of connecting an XBox 360 to the TV set.

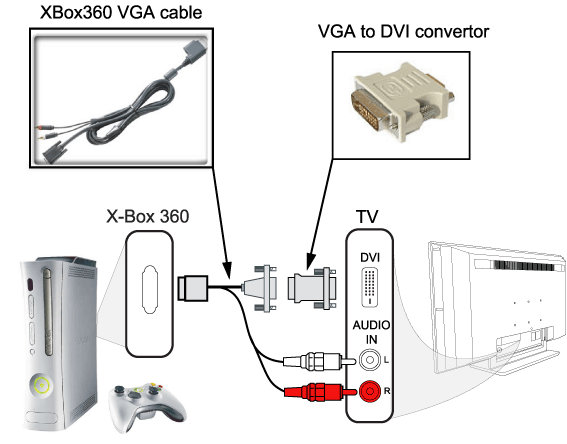

1. Using a VGA cable from XBox 360 to TV in PC mode

  1. Connect the VGA cable from the XBox to the 'VGA to DVI converter'.
  2. Connect the DVI end of the 'VGA to DVI connverter' to the DVI input of the TV set.
  3. Switch on the TV set and XBox.
  4. Press the 'AV' button on the TV remote control to display the SOURCE menu and then move the cursor up/down to select PC mode.

Note:
Select the XBox PC format that the TV will support.



2. Using a Component Cable from XBox 360 to TV in HD mode

  1. Connect the cinch YUV end of the 'HD AV' cable from the XBox to a 'YUV to VGA converter'.
  2. Connect the VGA end of the 'YUV to VGA converter' to a 'VGA to DVI converter'.
  3. Connect the DVI end of the 'VGA to DVI converter' to the DVI input of the television.
  4. If you wish to hear sound from your TV, connect the audio cinch of the 'HD AV' cable from the XBox to the 'AUDIO IN' left and right of the television.
  5. Switch on the TV set and XBox on.
  6. Press the 'AV' button on the remote to display the SOURCE menu and then move your cursor up/down to select HD mode.



Note:
Select the XBox video format that the TV will support.
