Question

Connecting to a cable box or satellite box

Answer

There are TWO ways to connect your Cable Box/Satellite Receiver to the set.

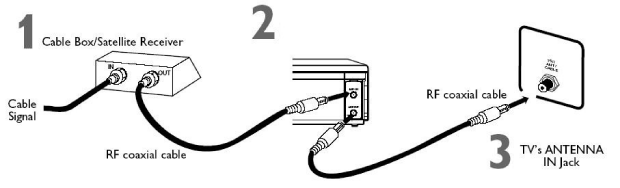

Option 1

  1. Connect a Cable TV or Satellite signal to the IN jack on the Cable Box/Satellite Receiver.
  2. Use an RF coaxial cable (supplied) to connect the OUT jack on the Cable Box/Satellite Receiver to the ANT-IN (Antenna In) jack on the set.
  3. Use a second RF coaxial cable to connect the ANT-OUT (Antenna Out) jack on the set to the TV’s Antenna In jack.

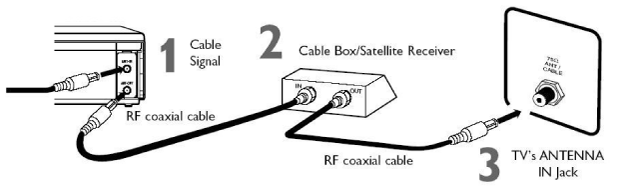

Option 2

  1. Connect a Cable TV or Satellite signal to the set’s ANT-IN (Antenna In) jack.
  2. Use an RF coaxial cable (supplied) to connect the ANT-OUT (Antenna Out) jack on the set to the IN jack on the Cable Box/Satellite Receiver.
  3. Use a second RF coaxial cable to connect the OUT jack on the Cable Box/Satellite Receiver to the ANTENNA IN jack
    on the TV.
