Question

Connecting External audio Equipment with 2 Channel Analog Stereo

Answer

  1. Connect the supplied red and white audio cable to the red and white AUDIO OUT jacks on the set and to the red and white AUDIO IN jacks on the Stereo. Match the cable colors to the jack colors.
  2. Connect the supplied yellow video cable to the VIDEO OUT jack on the set and to the VIDEO IN jack on the TV.

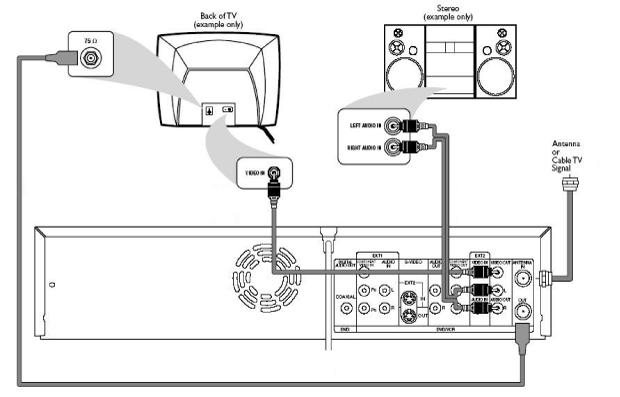

Connect External audio Equipment with 2 Channel Analog Stereo (Example Only)
