How to mount your system onto wall


Ask a qualified person to help you with the wall mounting, who should:

  • To avoid unexpected damage, learn about the piping, wiring and other relevant information inside your walls.
  • According to your walls’ materials, decide what type of screws you need to mount the set onto wall.
  • According to the drilling requirements, choose suitable drilling tools.
  • Take other precautions necessary for the wall mounting work.

Mounting your system

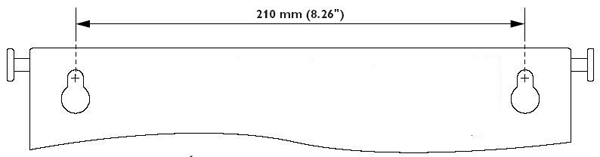

  1. Use the parameter in the below chart to mark the position where you want to hang the unit on the wall( The below is not a mounting bracket ,but a chart for hole distance).
  2. Drill two 6mm diameter holes.
  3. Secure the dowels and screws in the holes respectively, Leaving the screws 5mm proud of the wall.

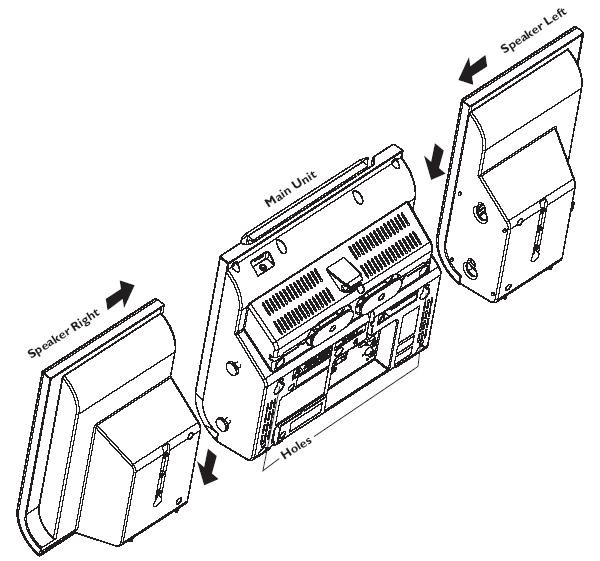

  4. Hang the unit on the fastening screws.
