Question

How can I connect the audio to my TV when I connect an external device with a DVI to HDMI connection?

Answer

When you make a DVI-HDMI connection you have to make a separate audio connection, since DVI does not support audio.

There are two ways to connect a DVI device to your TV:

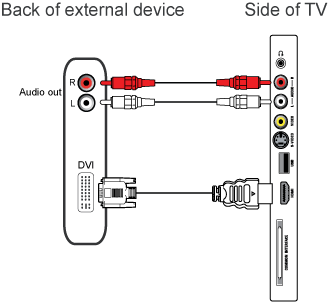

Side DVI to HDMI connection

Follow these steps to connect the devices:

  1. Switch the external device and the TV off.
  2. Connect the DVI-to-HDMI adapter from the 'DVI' connection of the external device to the 'HDMI' connection at the side of the TV.
  3. Connect the audio cable from the 'AUDIO OUT' connection of the external device to the 'AUDIO L R' connection at the side of the TV.
  4. Switch the external device and the TV on.
  5. Press the 'SOURCE'  button on the remote control repeatedly to select HDMI SIDE and press the 'OK' button to accept.

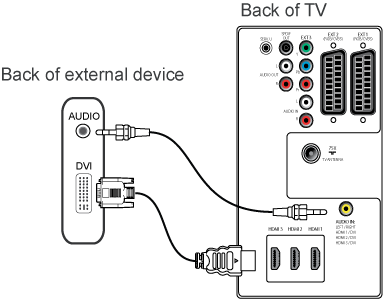

 Rear DVI to HDMI connection

Follow these steps to connect the devices:

  1. Switch the external device and the TV off.
  2. Connect the DVI-to-HDMI adapter from the 'DVI' connection of the external device to the 'HDMI 1/2/3' connection at the rear of the TV.
  3. Connect the mini-jack audio cable from the 'AUDIO OUT' connection of the external device to the 'AUDIO IN: LEFT/ RIGHT' connection at the rear of the TV.
  4. Switch the external device and the TV on.
  5. Press the 'SOURCE'  button on the remote control repeatedly to select HDMI 1/2/3 depending on where the external device is connected and press the 'OK' button to accept.
  6. Press the 'MENU' button on the TV remote control to display the main menu.
  7. Select TV MENU and press the cursor right.
  8. Press the cursor down to select INSTALLATION and press the cursor right.
  9. Press the cursor down to select CONNECTIONS and press the cursor right.
  10. Press the cursor down to select AUDIO IN L/R and press the cursor right.
  11. Press the cursor up/down to select HDMI 1/2/3 depending on where the external device is connected and press the 'OK' button to accept.
  12. Press the 'MENU' button to exit the menu.
