How do you connect the set to a television using Component Video Connection?


If the TV has component video connectors (there are different names for this output: Y/CB/CR, Y/PB/PR or Y/U/V):

  1. Connect the component video cables (not supplied) to the players 'COMPONENT VIDEO OUT' jacks and to the TV's 'COMPONENT VIDEO IN' jacks.
  2. Make sure that red output jack is connected to the red input jack, blue output is connected to the blue input and green output is connected to the green input.
  3. Connect the audio cable to the player's 'AUDIO LEFT' (white) and 'RIGHT' (red) output and the TV's 'AUDIO LEFT/RIGHT' input jacks (if there are no 'AUDIO LEFT/RIGHT' input jacks within the Component Video section then use any 'AUDIO LEFT/RIGHT' jacks available).

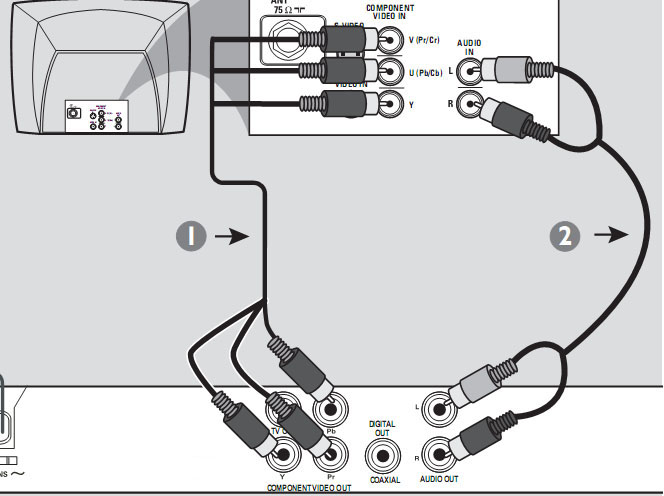

Component Video Connection. (Example Only)
