Question

How do I connect my home theater system (HTS) or surround sound system (SSS) to the TV?

Answer

  • The TV has a digital audio output (coaxial) and a Scart connection, and does not have an RCA audio (red and white) output. The audio equipment must have a digital audio/digital coax/spdif input or Scart connection in order to work with the TV.
  • If you have an RCA audio (red and white) equipment without a Scart or a digital audio connection, you can also purchase a Scart-to-cinch cable. Plug the Scart plug into the 'EXT1' connection at the bottom rear of TV and match the red and white audio cinch cables up to the input on your audio system. (click here for connection)

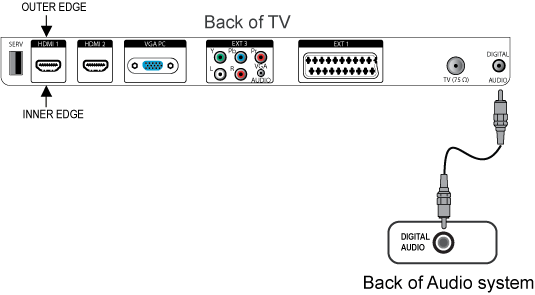

Connection using digital audio / digital coaxial / spdif input

  1. Unplug the TV and audio equipment before you make any connection.

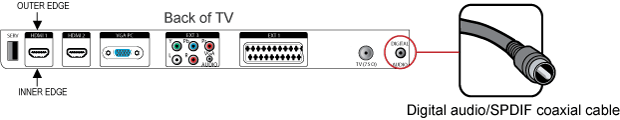

  2. Use a digital audio cable to connect one end to the 'DIGITAL AUDIO' coaxial output at the bottom rear of the TV.
  3. Connect the other end to the digital coaxial input of the audio equipment.
  4. Turn on the TV and select a program.
  5. Switch on the audio equipment and select the input to which the TV is connected.
  6. Adjust the volume on the audio equipment to hear the sound from the audio equipment loudspeakers.
  7. If you do not wish to hear the sound from the TV, press the volume down button on the remote control to turn the TV's volume down.

Note: The TV will output digital audio from program received from all inputs.

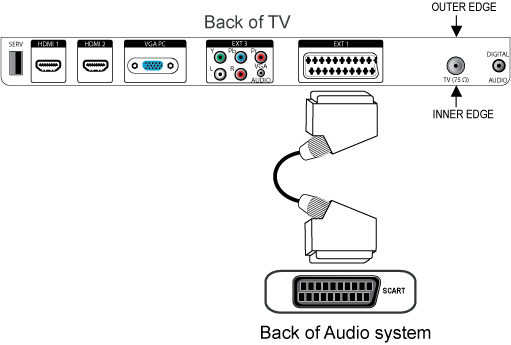

Connection using Scart-to-Scart connection

  1. Unplug the TV and accessory devices before you make any connection.
  2. Use a Scart cable to connect one end to the 'EXT1' connection at the bottom rear of TV.
  3. Connect the other end to the Scart connection on your audio system.
  4. Turn on the TV and select a program.
  5. Switch on the audio equipment and select the input to which the TV is connected.
  6. Adjust the volume on the audio equipment to hear the sound from the audio equipment loudspeakers.
  7. If you do not wish to hear the sound from the TV, press the volume down button on the remote control to turn the TV's volume down.

Note: The TV will only output audio from the Scart for analog program received from the RF tuner.

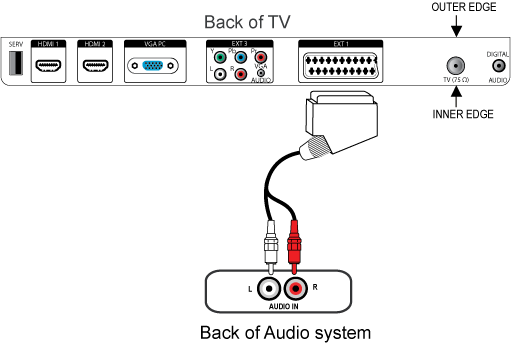

Connection using Scart-to-cinch audio (red and white) adaptor

  1. Unplug the TV and accessory devices before you make any connection.
  2. Use a Scart-to-cinch cable to connect the Scart end to the 'EXT1' connection at the bottom rear of TV.
  3. Connect the RCA (red and white) end to the RCA input on your audio system.
  4. Turn on the TV and select a program.
  5. Switch on the audio equipment and select the input to which the TV is connected.
  6. Adjust the volume on the audio equipment to hear the sound from the audio equipment loudspeakers.
  7. If you do not wish to hear the sound from the TV, press the volume down button on the remote control to turn the TV's volume down.

Note: The TV will only output audio from the Scart for analog program received from the RF tuner.
