Question

How do I connect my home theater system (HTS) or surround sound system (SSS) to the TV?

Answer

The TV only has Scart connection and does not have RCA audio (red and white) or digital audio (SPDIF) output. The audio equipment must have Scart connection in order to work with the TV.

If you have RCA audio (red and white) equipment without a Scart connection, you can also purchase a Scart-to-cinch cable. Plug the Scart plug into the 'EXT2' connection at the back of TV and match the red and white audio cinch cables up to the input on your audio system.

Follow these steps to connect the devices:

  1. Unplug the TV and audio equipment before you make any connection.

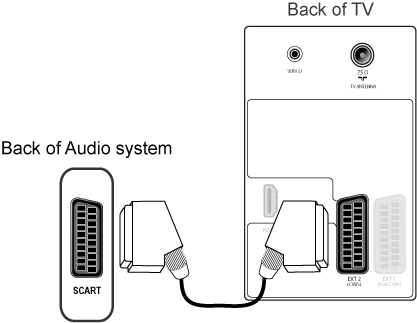

  2. Use the Scart cable to connect one end to the 'EXT2' connection at the back of the TV.
  3. Connect the other end to the Scart connection of the audio equipment.
  4. Turn on the TV and select a program.
  5. Switch on the audio equipment and select the input to which the TV is connected.
  6. Adjust the volume on the audio equipment to hear the sound from the audio equipment loudspeakers.
  7. If you do not wish to hear the sound from the TV, press the volume down button on the remote control to turn the TV's volume down.

Note: The TV will only output audio from the Scart for program received from the RF tuner, CVBS and S-Video.
