Question

How do I connect an external equipment (such as an iPod player or a MP3 player) to the device?

Answer

Connecting an iPod player:

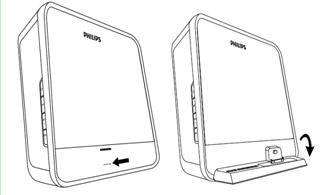

  1. Push to open the dock compartment as shown on the diagram.
  2. Place the iPod player in the dock.
  3. Press SOURCE button repeatedly to select iPod source. This button is located on the side of the dock.
    • The connected iPod plays automatically.
  4. To remove the iPod, pull it out from the dock.

Connecting other external device:

  1. Connect the supplied MP3 link cable to (1) MP3-LINK jack (3.5mm) on the back of the unit and (2) headphone jack on an external device.
  2. Press SOURCE button repeatedly to select MP3 link source. This button is located on the side of the dock.
  3. Use the controls on the external device to play music.
