Question

How do I connect my home theater system (HTS) or surround sound system (SSS) to the TV?

Answer

  • The TV only has a digital audio output (coaxial) and does not have an RCA audio (red and white) output. The audio equipment must have a digital audio/digital coax input in order to work with the TV.

  • If you have analog audio equipment without a digital audio input, you can connect the audio output from the cable/satellite box directly to the audio equipment. (click here for connection)

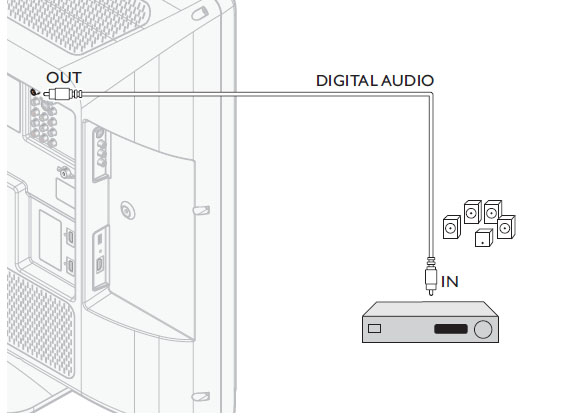

Connection using digital audio / digital coaxial input

  1. Unplug the TV and audio equipment before you make any connection.
  2. Use a digital audio cable (1) to connect one end to the DIGITAL AUDIO OUT (SPDIF) at the back of the TV.
  3. Connect the other end to the digital audio (SPDIF) input of the audio equipment.
  4. Turn on the TV and select a program.
  5. Switch on the audio equipment and select the input to which the TV is connected.
  6. If you experience audio delay on the audio equipment, refer to the user manual of the audio equipment to check of any possibility to set the audio delay time.
  7. Adjust the volume on the audio equipment to hear the sound from the audio equipment loudspeakers.
  8. If you do not wish to hear the sound from the TV, press the volume down button on the remote control to turn the TV's volume down.
