Question

How can I view the encrypted/scrambled digital channels on my TV?

Answer

The encrypted/scrambled digital channels (DVB-T and DVB-C) can be decoded by either a Conditional Access Module (CAM or CI-Module) with a smart card or by a Set-top box, depending on the implementation by the service provider.

  • Consult your dealer or service provider about receiving encrypted/scrambled digital channels.
  • If you wish to buy a CAM or to know which CAM is available for your TV, you may contact the dealer or service provider.
  • Your TV does not support DVB-S. In order to receive DVB-S channels, you will need an additional, compatible set-top box.
  • Philips does not supply CAM as an accessory.

Make sure that you use the latest CAM/CI-Module and that your TV has the latest software installed.

  • You can find the latest TV Firmware Upgrade Software and Readme File documents on the Philips support website. Refer to the SOFTWARE & DRIVERS section. Follow the instructions in the user manual or the Firmware Upgrade readme file on how to upgrade your TV software.
  • Verify with your service provider whether you have the latest CAM.

If you have already installed the latest software and your TV is still unable to install the CAM/CI-Module;

You may have inserted the CAM in the wrong orientation. If the CAM is inserted correctly, a prompt will appear onscreen that the CAM is connected and the COMMON INTERFACE menu will be highlighted in the options menu.

IMPORTANT: Read the instructions provided by your service provider on how to set up the CAM before you connect it to the TV.

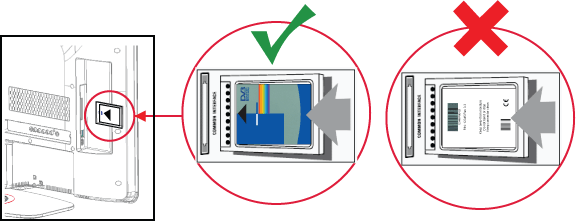

Please follow these steps to confirm that the CAM is inserted correctly.

  1. Switch on the TV.
  2. If your CAM comes with a smart card, first insert the smart card into the CAM.
  3. Check that the arrow on the smart card faces the same side as the arrow on the CAM.
  4. Following the direction printed on the CAM, gently insert the CAM into the COMMON INTERFACE slot at the side of the TV.
    Caution: Do not use force if the CAM module does not enter smoothly! Make sure that you have inserted the CAM in the correct orientation.
  5. A prompt appears on-screen when the CAM is inserted correctly and recognized.
  6. If you use a CI+ module, your TV will display five steps of authentication, which will last for a few seconds. You do not need to do anything when you see these messages; they will disappear automatically after a few seconds.
  7. Press the  options button on the TV remote control to display the options menu.
  8. If the CAM is recognized, the COMMON INTERFACE menu will be highlighted.
  9. Select COMMON INTERFACE and press the 'OK' button to select the CAM.
  10. Press the 'OK' button to display the CAM applications. The CAM applications vary depending on the service provider.
  11. Follow the instructions provided by your service provider.
  12. Once completed, press the  button to exit the menu.

If your TV still does not recognize the CAM/CI-Module;

  • Please contact the Philips Consumer Care center for further assistance or to get more information about this issue. You can find the contact details on the Consumer Support page.
  • Make sure you have the model number and the serial number to hand when you call us. You can find these numbers on the sticker on the side/back of your TV.
