Question

How do I reinsert the brew group?

Answer

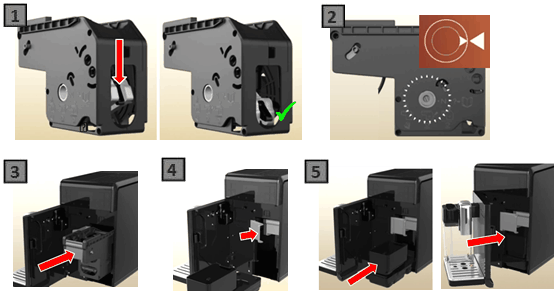

To reinsert the brew group:
Important!
If the brew group does not stand in the rest position, it cannot be reinserted.

  1. The lever must be in contact with the brew group base. If it is not, you can push it down into the correct position.
  2. The two arrow heads on the side of the brew group will now match.
  3. Slide the brewing group into the machine.
  4. Close the brew group locking lever.
  5. Insert the internal drip tray with the coffee grounds container and close the service door.

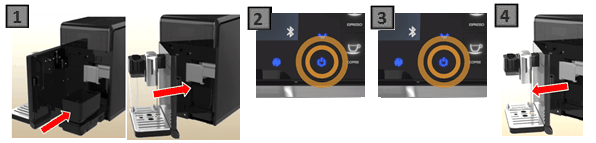

If you are still not able to reinsert the brew group:

  1. Place back the internal drip tray and the coffee grounds container and close the service door. Leave the brew group out.
  2. Press the ON/OFF button and turn ON the machine. The machine will automatically make the gearbox return to its starting position if there is a misalignment of the gearbox.
  3. Press the ON/OFF button and turn OFF the machine after it has started up.
  4. Open the service door. Remove the internal drip tray and coffee grounds container.
  5. Make sure the brew group is set in the rest position (see instructions above) and slide it back into the machine until you hear it lock into position.
  6. Close the brew group locking lever.
  7. Insert the internal drip tray with the coffee grounds container and close the service door.
